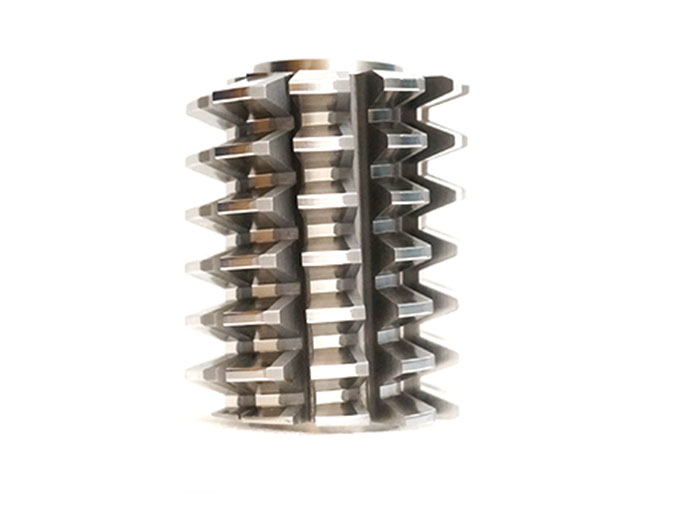

HOBS

The following types of hobs are available:

SPUR AND HELICAL GEAR HOBS
PRE-SHAVING GEAR HOBS
PRE-GRINDING GEAR HOBS
STRAIGHT AND INVOLUTE SPLINE HOBS
SERRATION HOBS
SPROCKET HOBS
WORM GEAR HOBS
TIMING BELT HOBS
SPECIAL HOBS



BASIC PARAMETERS:

Range:0.1 Module to 40 Module and 64 DP to 0.8 DP
Start: Single or Multi Start
Accuracy: AA, A, B & C (as per DIN 3968)
Forms : Non-Topping, Semi-Topping, Topping, finishing, pre-shaving, pre- grinding, with or without protuberance, full fillet etc.
Material : M-2,M35, ASP 30 etc.

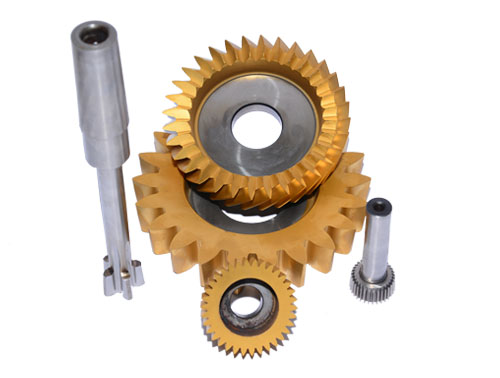

GEAR SHAPER CUTTERS

Types

DISK TYPE SHAPER CUTTERS
SHANK TYPE SHAPER CUTTERS
HUB TYPE,DEEP COUNTERBORE TYPE SHAPER CUTTERS

BASIC PARAMETERS:

Range :
0.3 Module to 14 Module for Spur and Helical Gears.
Profile modifications : chamfering, topping, protuberance, flat or fillet roots
Accuracies : AA, A, B, C to DIN 1829.
Material : M2, M35, ASP 30 etc.

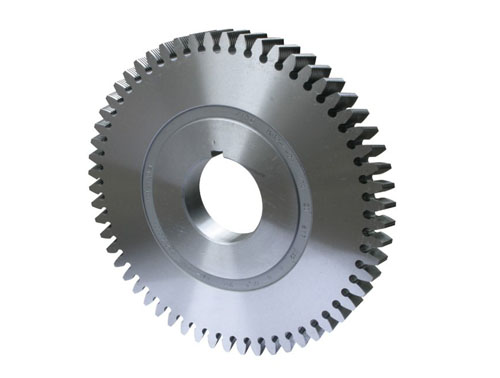

GEAR SHAVING CUTTERS


Types:
Conventional, diagonal & underpass.

RANGE:
0.8-8 Module and 30-3 DP
170 mm to 260 mm PCD.

MATERIAL:
M2, M35, ASP 30 etc.

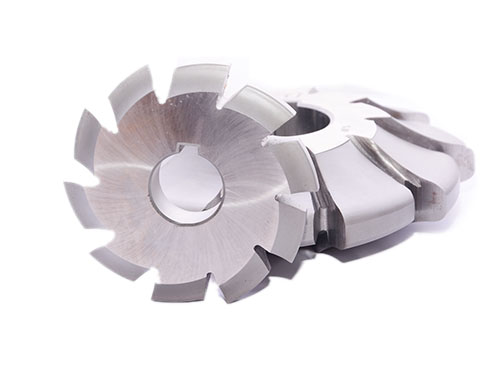

GEAR MILLING CUTTERS


TYPES:

INVOLUTE GEAR CUTTERS-DP and Module series in the range 0.3 Module to 55 Module & 64 DP to 0.5 DP.

- SPLINE MILLING CUTTERS
- SPROCKET MILLING CUTTERS

Form Relieved Milling Cutters for involute and special forms.
